The portable fiber laser marking machine

Model: KN-MI20 / KN-MI30 / KN-MI50

Category: Fiber Laser Marking Machine

Brand: Kano Laser CNC

Color: Blue and silver

Price range: $ 2000- $ 6500 (depends on configuration)

Rating: 4.8

Views: 17642

Supply Ability: 50 sets / month in stock

Product description

Product introduction


Fiber laser source portable laser marking machine is suitable for marking jewelry, watches, phone cases, keyboards, rings, tags, electronic components. Portable laser marking system is easy to transport or move, now portable fiber laser marking machine for sale at affordable price.


Details of machine components




Laser source: Raycus from China


High stability laser output

High single pulse energy

High marking efficiency

Short pulse stabilization time

High reliability

Maintenance free operation.



Galvo head: Sino


The galvanometer has good operating stability, high positioning accuracy, fast marking speed, and strong anti-interference ability. The standard mechanical scan angle is ± 11 ° and the maximum mechanical scan angle is ± 15 °.



F-theta lens: Singapore Wavelength


The lens is commonly used in galvanometer scanning systems for laser marking, engraving and cutting; with the ability to deliver a focused point to many points within a scan field.




Control board: BJJCZ


Original Beijing JCZ control system, EZCAD software (support windows 7/8/10), Support Photoshop, Coral drawing and AI, PLT, DXF, BMP, DST, DWG, DXP form etc.




Computer: Lenovo


The CPU and graphics card operate on standard power consumption, programmed automatically and balance the operating noise and the performance of the whole machine.



Red light indicator system


Internal and external red dual focus system Help you easily find focus length



Safety glasses


Protect eyes of laser machine operators, avoid radiation.



 Fixed lines


Attach two fixed lines, when recording the same area in the same matter, with this you fix the position, to save more time.



Pedal


Free your hands, improve marking efficiency, step on the pedal and dial once.



Electronic component


Adopt genuine electronic components to connect the circuit, everything is ordered and sequenced, it is convenient to find the corresponding circuit for detection when problems are found.


Accessories that can be used with the machine





Rotary device: diameter 80mm


* Jewelry: such as rings, bracelets

* Cylinder: such as cups, coke bottles, steel tube, battery

* Hollow circle: bearing, wire






Fixture


Generally used for machines over 50W, it is mainly needed for cutting metal. When cutting thin metal plates, the plates cannot be placed directly on the worktable, because the fiber laser works with thermal effects and continues to mark a part of the plate for a long time. Score until the board is cut, prolonged heating in one place will cause the board to warp. At this time, this device is necessary to clamp the plate to insulate and not deform.




Smoke extractor

When the marking machine works for deep marking or metal cutting, it will produce more smoke than general marking. At this time, to protect the air in the store, it is very appropriate to set up a smoke extractor. If the marking machine is used in the factory, the smoke may be emitted by itself.


Machine Applications

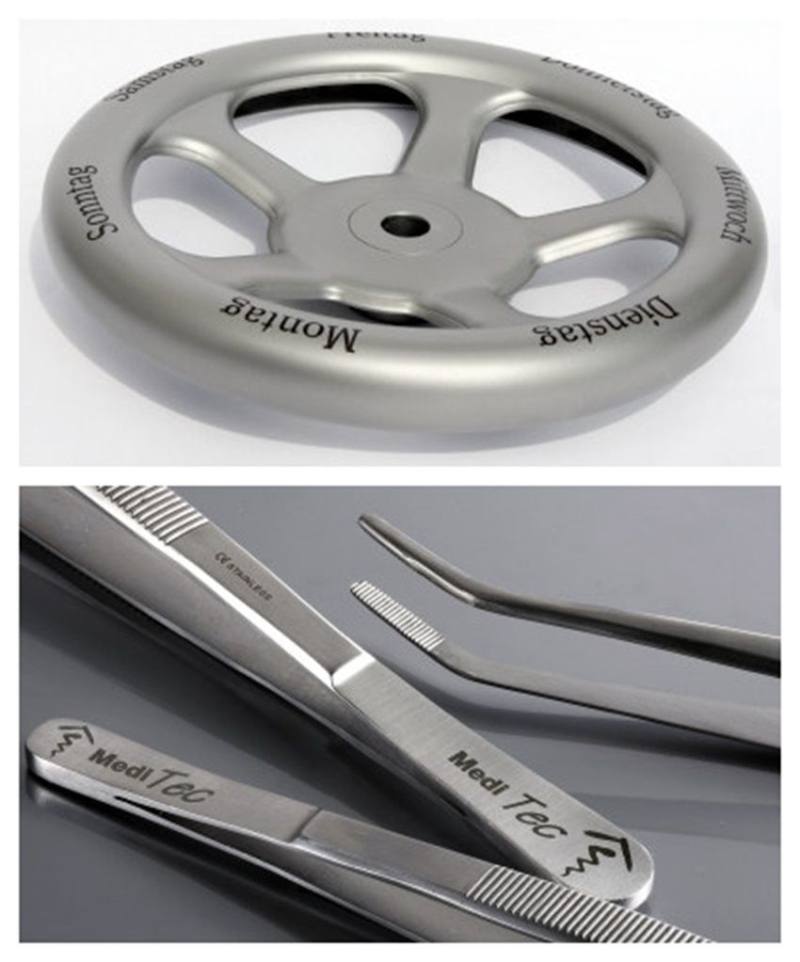

1. Applicable materials: any metal materials (including precious metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramic and other materials.

2. Applicable industries: jewelry, watches, telephone keypad, plastic translucent keys, electronic components, integrated circuits (IC), home appliances, communication products, sanitary ware, tools, accessories, knives, glasses, auto parts, luggage buckles, kitchen utensils, stainless steel products and other industries.


Warranty and After-Sales Service


1. Full 24 hours after-sale service: Our expert engineer will help customer to solve the problem by Whatsapp, Skype, Teamviewer or Online Chat in time when problems arise.

2.All the finished machines we deliver are 100% strictly tested by our quality control department and engineering department.

3.Custom OEM service and OEM orders are welcomed due to our abundant experiences. All OEM services are free, customer only need to provide us with their logo drawing, function requirements, colors, etc. MOQ is not required. None of your personally identifiable information (such as your name, address, email address, banking information, etc.) will be disclosed or shared with third parties.







Technical parameter

Technical parameters


Model

 KN-MI20/KN-MI30/KN-MI50

Laser power

 20W/30W/50W

Laser wavelength

 1064nm

Output fiber length

 2m

Working area

 100*100mm/200*200mm/300*300mm

Pulse width

 90-120ns

Repetition frequency range

 20-80kHz

Typical beam quality, M2

 <1.8

Single pulse energy

 1mJ

Output power stability

 <3%

Output beam diameter

 7±1mm

Output power adjustment range

 10% -100%

Minimum line width

 0.01mm

Minimal character

 0.1mm

Repeatability accuracy

 ±0.001mm

Laser on time

 180 μseg

Laser off time

 180 μseg

Marking speed

 0-5000mm/s

Scan speed

 0-7000mm/s

Working voltage

 220V ± 10% / 50Hz  110V ± 10% / 60Hz  personalized

Power consumption

 500-600w

Cooling way

 Por aire

Working environment

Clean and dust-free or less dust

Continuous working time

 >16h

Humidity

 45 ~ 85% (no condensation)

Laser lifetime

 >100000 hours

Operating temperature

 0 ~ 40℃

 Marking format

Graphics, text, barcodes, QR code, auto date, batch number, serial number, etc.

Support graphic format

Ai, plt, ;dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif

Packing size (L * W * H)

62*64*109cm

Net / gross weight

45kg/70kg


Product features and benefits


1. High stabilization: The portable fiber laser marking machine is equipped with the best brand sino galvo scanning head.

2. High speed: The powerful functions of the software are compatible with the imported scanning system, the maximum marking speed can reach 7000mm / s.

3. Convenience: The portable laser marking machine adopts an integrated and portable design structure, easy to carry, small in size and maintenance-free.

4. Power saving: the power consumption of the whole machine less 500W.

5. Long service lifetime: The protable laser marking machine has no consumption, and the service life of the fiber laser can reach 100,000 hours.

6. Perfect light beam: the focus light beam of the portable fiber laser marking machine is less than 20um, especially it applies to subtle and precise marking.

7. Powerful function: Compatible with CorelDraw, AutoCAD, Photoshop, etc. files. Supports the file format of PLT, PCX, DXF, BMP, etc. Supports automatic coding, serial number, batch number, barcode, QR code, 2D code and so on.


Focus of different lenses


Optical parameter           Field lens range (mm)           Focus(mm)
f=63           50*50           85
f=100           70*70           110
f=163/160           100*100           195
f=210           150*150           255
f=254           175*175           285
f=290           200*200           330
f=420           300*300           475


Parameters for stainless steel in fiber laser colors


Color           Power (Power)           Speed (Speed)           Fill (Hatch)           Focus
White           20           700           0.06           Is in focus
Yellow           60           700           0.06           Is in focus
Black           90           150           0.02           Not in focus, plus or minus 7mm distance from focus
Color           90           150change it bigger           0.02           Same as black


Software knowledge: EZCAD


Hatch is used to force EzCad to calculate the hatch fills of the current objects.


EzCad software ¨Hatch¨ interface for parameter setting and filling


(Mark Contour) Mark contour: whether to show and mark the contour of the current object or not.

1.

it means that when you click this, mark the hatch line first and then mark the outline.

2.

it means that when you click this, mark the outline first and then mark the hatch line.


Hatch 1/2/3: Users can have three independent fill parameters to fill the same object at the same time.

Each group of filling parameters can be assigned a pen number, which represents a group of marking parameters.


(Enable) Enable: whether to allow the validity of the current shading parameter.


(All calc) All calc: When chosen, mark all the hatching that is on the same line. No selection system will mark as order in the object list, mark the hatch line in the first rectangle, then mark the hatch line in the second rectangle, and so on.


1.

One-way fill: the fill line will be marked from left to right.

2.

Bi-directional fill: the fill line will be marked first from left to right and then from right to left.

3.

Ring Fill - Fill the object as a ring from the outside to the inside.

4.

Optimize bidirectional filling - Similar to bidirectional filling, but every end is connected.

5.

Optimize bidirectional filling: Jump to an empty position.


6.

The space between the two fill lines.


7.No need to change the remaining parameters of this interface.

Common problem

Frequently asked questions


1.How to install and run the fiber laser engraving machine?

Our engineer has installed the machine before shipment, for the installation of some small parts, we will send the user manual together with the machine. 99% of clients can teach themselves.


2.How can I get the sample to check its quality?

If you want to mark a sample for quality check, we can help you do it. You need to provide the logo or design to us first, free trademark samples can be provided.


3.Are there wearing parts for the laser marking machine and how much do I need to buy?

The laser marking machine has no consumable parts. The main configuration of the machine is the laser, the galvanometer and the F-theta lens. If the dust is cleaned in time after using the machine, these parts will not be damaged. Our guarantee is for the whole machine. Once something is broken, please contact us as soon as possible and we will give you a reasonable solution.


4.What's the package of the fiber laser engraving machine?

We have a 3-layer package: for the outside, we adopt a wooden case; in the middle, the machine is covered by foam, to protect it against shocks; For the inner layer, the machine is covered by a thickened plastic bag for waterproofing


5.I want to cut 1mm stainless steel sheet, 300 * 300mm working area.

The marking range of laser marking machine depends on F-theta lens. The smaller the F-theta lens, the shorter the focal length and the stronger the power. For example, 100 * 100mm lens focal length is 160mm, 300 * 300mm lens focal length is 420mm. When working long distance, the working material is weak in contact with light, which is not enough to cut it in a short time.


6.Can laser marking machine engrave color?

Laser marking machine can engrave black, white and yellow on stainless steel. If you want multiple colors, it will be another MOPA laser marking machine, which is professional stainless steel color marking machine. The main difference is the laser and some technical parameters. You can search the blog for more details.


7.Does the fiber laser marking machine use household electricity or industrial electricity?

Laser marking machine uses household electricity, 220V 50Hz or 60Hz.


8. Do you know the difference between 20w and 30w?

Yes, 20w main mark on the surface, mark speed is normal. 30w can mark deep up to 0.8mm in metals, while marking on the surface, speed faster than 20w.
