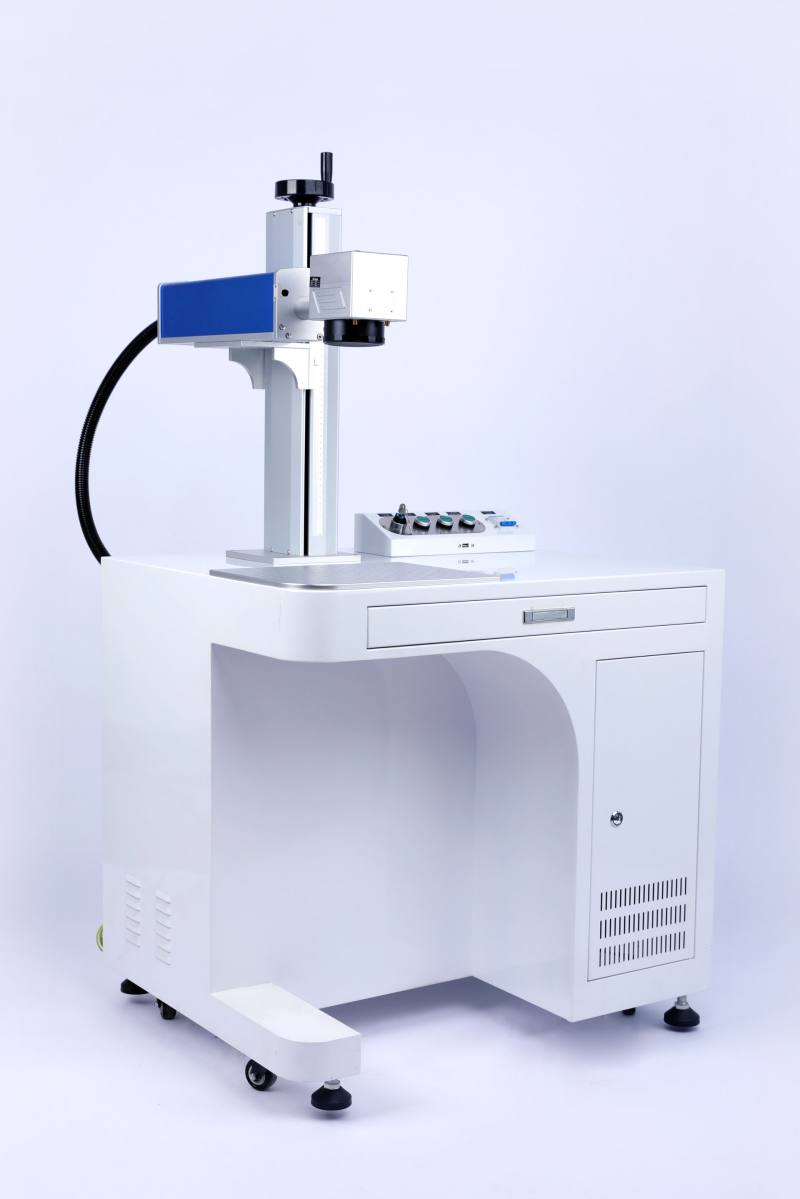

Fiber laser engraving machine for metal
Model: KN-MD20 / KN-MD30 / KN-MD50 (Desktop)
Category: Fiber Laser Marking Machine
Brand: Kano Laser CNC
White color
Price range: $ 2000- $ 8000 (depends on configuration)
Rating: 4.9
Views: 55210
Supply Ability: 100 sets / month in stock
Product introduction
20W fiber laser marking machine makes the mark on the surface on metals and some hard plastics.
30W laser marking machine make the mark on the surface faster than 20w, also it can make the deep mark on metals max up to 0.8mm thick, it can also cut metals, but the speed is very slow.
50W laser marking machine makes the mark on the surface and the deep mark, more function that can cut silver, gold and more metals. For deep scoring up to 1.2mm, for cutting metals up to 1.5mm.
Details of machine components
Accessories that can be used with the machine
Machine Applications
Fiber laser marking machine is used on metals (stainless steel, aluminum, alloy, brass, sliver, gold, titanium, iron, knives, glasses, watches, guns, bearings, gears, auto parts, hardware and tools, aerospace components) and non-metal surfaces (such as mobile phone buttons, translucent plastic buttons, electronic components, integrated circuits (ICs), communication products, sanitary ware, accessories, integrated circuit chips, computer accessories, watches, wires and cables). It even includes necklaces, bracelets, and many other areas, such as jewelry and decorations marked with graphics and text. The deep laser engraving machine can also cut thin metals, such as stainless steel, aluminum, alloy, brass, gold, titanium and other industries.
Warranty and After-Sales Service
1. Full 24 hours after-sale service: Our expert engineer will help customer to solve the problem by Whatsapp, Skype, Teamviewer or Online Chat in time when problems arise.
2.All the finished machines we deliver are 100% strictly tested by our quality control department and engineering department.
3.Custom OEM service and OEM orders are welcomed due to our abundant experiences. All OEM services are free, customer only need to provide us with their logo drawing, function requirements, colors, etc. MOQ is not required. None of your personally identifiable information (such as your name, address, email address, banking information, etc.) will be disclosed or shared with third parties.
Technical parameters
Product features and benefits
Multiple power laser light source, available for many industries;
Long lifetime, maintenance free within 100,000 hours, operated in 24 hours and severe working conditions;
High electro-optical conversion efficiency, little power coupling loss, lower power consumption with only 0.5 KW / hour;
Easy and fast installation, USB connected with computer easily.
Free Maintenance Operation: No maintenance required for the laser or cleaning the lens.
Focus of different lenses
Parameters for stainless steel in fiber laser colors
Software knowledge: EZCAD
EzCad software ¨Hatch¨ interface for parameter setting and filling
(Mark Contour) Mark contour: whether to show and mark the contour of the current object or not.
1.
2.
Hatch 1/2/3: Users can have three independent fill parameters to fill the same object at the same time.
Each group of filling parameters can be assigned a pen number, which represents a group of marking parameters.
(Enable) Enable: whether to allow the validity of the current shading parameter.
(All calc) All calc: When chosen, mark all the hatching that is on the same line. No selection system will mark as order in the object list, mark the hatch line in the first rectangle, then mark the hatch line in the second rectangle, and so on.
1.
2.
3.
4.
5.
6.
7.No need to change the remaining parameters of this interface.
Frequently asked questions
1.How to install and run the fiber laser engraving machine?
Our engineer has installed the machine before shipment, for the installation of some small parts, we will send the user manual together with the machine. 99% of clients can teach themselves.
2.How can I get the sample to check its quality?
If you want to mark a sample for quality check, we can help you do it. You need to provide the logo or design to us first, free trademark samples can be provided.
3.Are there wearing parts for the laser marking machine and how much do I need to buy?
The laser marking machine has no consumable parts. The main configuration of the machine is the laser, the galvanometer and the F-theta lens. If the dust is cleaned in time after using the machine, these parts will not be damaged. Our guarantee is for the whole machine. Once something is broken, please contact us as soon as possible and we will give you a reasonable solution, such as send you a new one.
4.What's the package of the fiber laser engraving machine?
We have a 3-layer package: for the outside, we adopt a wooden case; in the middle, the machine is covered by foam, to protect it against shocks; For the inner layer, the machine is covered by a thickened plastic bag for waterproofing
5.I want to cut 1mm stainless steel sheet, 300 * 300mm working area.
The marking range of laser marking machine depends on F-theta lens. The smaller the F-theta lens, the shorter the focal length and the stronger the power. For example, 100 * 100mm lens focal length is 160mm, 300 * 300mm lens focal length is 420mm. When working long distance, the working material is weak in contact with light, which is not enough to cut it in a short time.
6.Can laser marking machine engrave color?
Laser marking machine can engrave black, white and yellow on stainless steel. If you want multiple colors, it will be another MOPA laser marking machine, which is professional stainless steel color marking machine. The main difference is the laser and some technical parameters. You can search the blog for more details.
7.Does the fiber laser marking machine use household electricity or industrial electricity?
Laser marking machine uses household electricity, 220V 50Hz or 60Hz.
8. Do you know the difference between 20w and 30w?
Yes, 20w main marks on the surface, marking speed is normal. 30w can mark depth up to 0.8mm in metals, while marking on the surface, speed faster than 20w.
